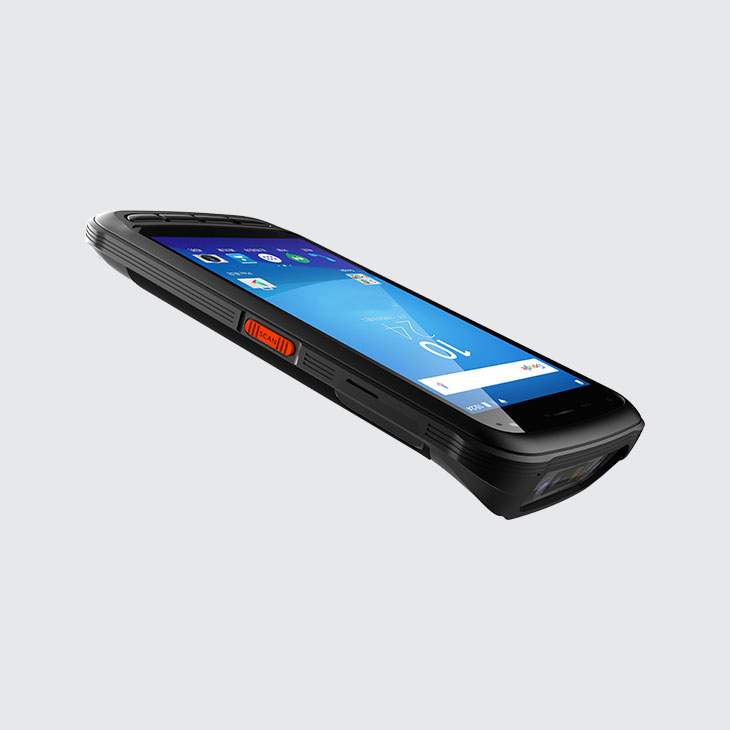

    H71 PDA.jpg


    H71 Mobile Computer
    Fully Upgraded Performance, Versatile Functions Enabled
    H71 is an industrial-grade rugged mobile computer with high extensibility. Built with Android 8.1 OS and Octa-Core processor, it supports abundant optional functions, including barcoding, NFC, HF, UHF, iris/fingerprint recognition, PSAM and camera, etc. The excellent performance makes H71 ideally deployed in logistics, retail, warehousing, healthcare, power, card, parking charge, government projects to help users quickly achieve informatization management and improve operational efficiency.

    Fully Upgraded Performance, Versatile Functions Enabled
    Features

    Cortex-A53 Octa-core 2.5GHz
    Android 8.1 (GMS Certified)
    RAM+ROM: 3+32GB
    5.2'' IPS 1080P Screen
    5000mAh Powerful Battery
    IP65 / IP67 Sealing
    1.8m Drop Proof
    4G / Dual-band WIFI

    Functions
    Barcode Scanning (Optional)
    NFC
    UHF RFID (Optional)
    Fingerprint / Iris (Optional)
    13MP Autofocus Camera
    PSAM (Optional)



    SPECIFICATIONS
    Physical Characteristics
    Dimensions
    164.2 x 78.8 x 17.0 mm / 6.46 x 3.1 x 0.67 in. (for standard version)
    Weight
    < 288 g / 10.15 oz. (for standard version)
    Display
    5.2'' IPS FHD 1920 x 1080
    Touch Panel
    Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
    Power
    Main battery: Li-ion, rechargeable, 5000 mAh
    Standby: over 350 hours
    Continuous use: over 12 hours (depending on user environment)
    Charging time: 3-4 hours (with standard adaptor and USB cable)
    Expansion Slot
    1 slot for SIM card, 1 slot for SIM or TF card
    Interfaces
    USB 2.0 Type-C, OTG, TypeC headphones supported
    Audio
    Speaker, 2 microphones
    Keypad
    4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
    Sensors
    Gravity sensor, Light Sensor, Proximity Sensor, Vibration Motor
    User Environment
    Operating Temp.
    4 °F to 122 °F / -20 °C to 50 °C
    Storage Temp.
    -40 °F to 158 °F / -40 °C to 70 °C
    Humidity
    5% RH - 95% RH non condensing
    Drop Specification
    Multiple 1.8 m / 5.9 ft. drops (at least 20 times) to the concrete across the operating temperature range
    Tumble Specification
    1000 x 0.5 m / 1.64 ft. falls at room temperature
    Sealing
    IP65 / IP67 per IEC sealing specifications
    ESD
    ±15 KV air discharge, ±6 KV conductive discharge
    Developing Environment
    Operating System
    Android 8.1 ; Soti MobiControl, SafeUEM supported
    SDK
    Software Development Kit
    Language
    Java
    Tool
    Eclipse / Android Studio
    Performance
    CPU
    Cortex-A53 Octa-core 2.5 GHz
    RAM+ROM
    3 GB + 32 GB
    Expansion
    Supports up to 128 GB Micro SD card
    Communication
    WLAN
    IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
    WWAN (Europe)
    2G: 850/900/1800/1900MHz
    3G: B1,B2,B4,B5,B8
    4G: B1,B3,B5,B7,B8,B20,B40
    WWAN (America)
    2G: 850/900/1800/1900MHz
    3G: B1,B2,B4,B5,B8
    4G: B2,B4,B7,B12,B17,B25,B66
    WWAN (China)
    2G: 900/1800MHz
    3G: WCDMA: B1,B8
           CDMA2000 EVDO: BC0
           TD-SCDMA: B34,B39
    4G: B1,B3,B5,B8,B34,B38,B39,B40,B41
    WWAN (Others)
    Depending on the country's ISP
    Bluetooth
    Bluetooth v2.1+EDR,3.0+HS,v4.1+HS
    GNSS
    GPS/AGPS, GLONASS, BeiDou; internal antenna
    Note
    *H71 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.
    Fingerprint
    Sensor
    Capacitive TCS1/TCS2; Optical Morpho CBM-E3
    Note
    *For detailed specification, please check H71 (Capacitive/Optical Fingerprint) webpages
    PSAM
    Protocol
    ISO7816 T=0, T=1
    Slots
    2 slots for PSAM cards
    Note
    *This function is optional




    UHF RFID
    Frequency
    865-868 MHz / 920-925 MHz / 902-928 MHz
    Protocol
    EPC C1 GEN2 / ISO18000-6C
    Antenna
    Circular polarization (1 dBi)
    Power
    0.4 W (26 dBm, +16 dBm to +26 dBm adjustable)
    R/W ranges
    Up to 3m (depend on tags and environment)
    Note
    *This function is optional
    Barcode Scanning
    1D Linear Scanner
    Zebra: SE965; Honeywell: N4313
    2D Imager Scanner
    Zebra: SE4710 / SE2707; Honeywell: N6603
    1D Symbologies
    UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
    2D Symbologies
    PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
    Note
    *This function is optional

    H71-1 HF PDA.jpg


    Camera
    Camera
    13 MP autofocus rear camera with flash, optional 5 MP front camera
    NFC
    Frequency
    13.56 MHz
    Protocol
    ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
    Chips
    M1 card (S50, S70), CPU card, NFC tags, etc.
    Range
    2-4 cm
    Note
    *This function is optional;
    Note2
    *NFC alternative to HF RFID.
    HF RFID
    Frequency
    13.56 MHz
    Protocol
    ISO14443A/B, ISO15693
    Chips
    M1 card (S50/S70), M0 (Ultralight),M3 (Desfire D40/D41/D81)
    CPU_A card,CPU_B card
    ICODE II,TI2048,LRI64K
    Others for customization
    Range
    3-8 cm
    Note
    *This function is optional; HF RFID alternative to NFC.
    Iris Recognition
    Rate
    < 150 ms
    Range
    20-40 cm
    FAR
    1/10000000
    Note
    Protocol:ISO/IEC 19794-6,GB/T 20979-2007
    Note2
    *This function is optional
    *Iris is alternative to front camera


    H71-2 2D.jpg
